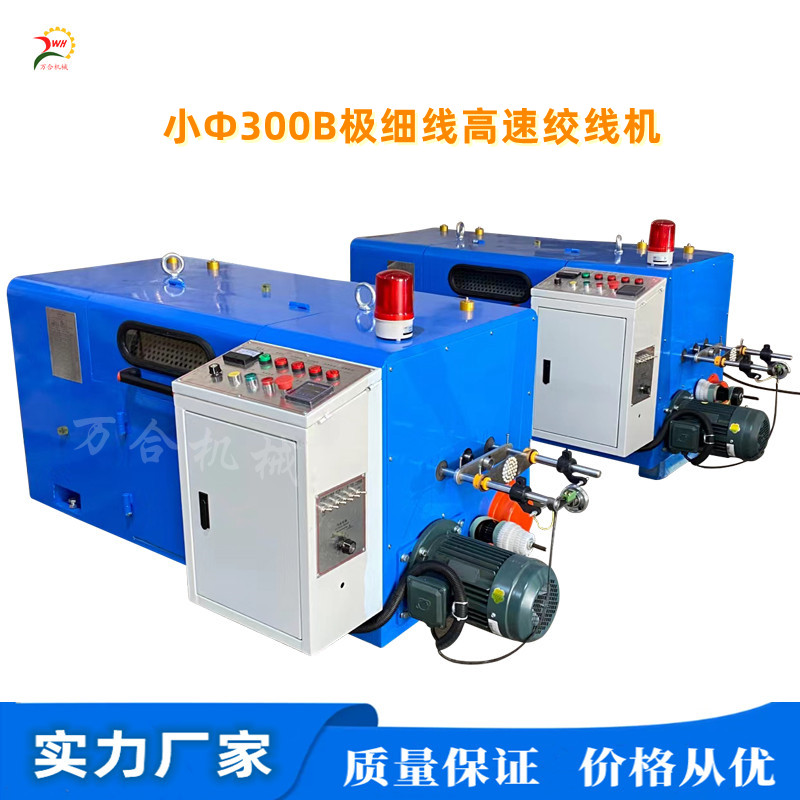

單根線徑

Diameter of each wire

Φ0.016~0.12㎜

Φ0.03~0.16㎜

?0.05~0.28mm

絞合截面積

Stranded cross-sectional area

0.0014~0.0035mm²

0.005~0.3mm²

0.035~0.45mm²

絞     距

Twist pitch range

0.92~11.83㎜

0.80~10.60㎜

1.33～17.57mm

驅動馬達

Drive motor

3HP Motor+

Frequency adjust speed

5HP Motor+

Frequency adjust speed

5HP Motor+

Frequency adjust speed

線盤裝銅量

Weight   of conductor on reel

20㎏

20㎏

30㎏

機械尺寸㎜

Mechanical Dimensions

L1800×W750×H845

L1800×W750×H850

L1900×W750×H950

機械重量

Machine net weight

700㎏

750㎏

800㎏

絞 向

Twisting direction

“S”   or “Z” direction

使用電源

Voltage frequency

50HZ/380V（三相五線Three-phase   five-wire）

排線裝置

Cable device

加強型精密光桿排線器，排輻、排距均可調整

Enhanced   polished rod cable arranging device, row spacing and row width can be   adjusted at will

收線張力

Take-up tension

磁粉離合器控制張力、大小可調節，被拉線不變型。

The   magnetic powder clutch controls the tension, the size can be adjusted, and   the drawn wire does not change shape.

保護功能

Protective function

⑴長度到達設定參數自動停機

The length meter will automatically stop   when it reaches the set parameters;

⑵設備內部和外部斷線，自動停機報警The   internal and external disconnection of the equipment will automatically stop   and alarm;

⑶安全罩打開自動停機

It   will stop automatically when the lift is incorrect

⑷升降不正確自動停機

It   will stop automatically when the safety cover is opened。

⑸紅色警示燈：故障停機

Red   warning light: shutdown due to failure
