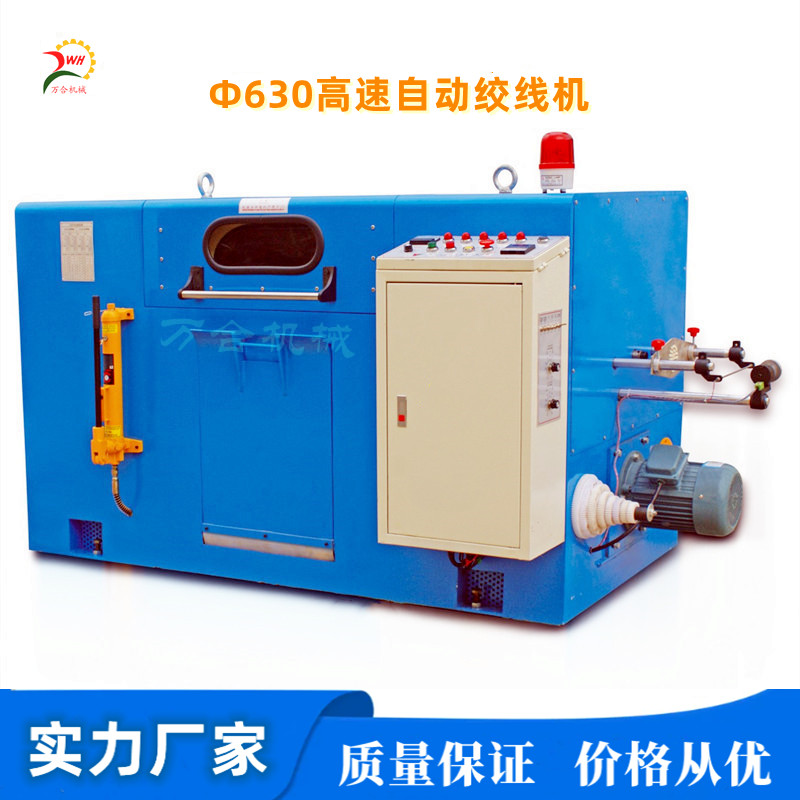

驅動馬達

Drive motor

10HP Motor+

Frequency adjust speed

10HP Motor+

Frequency adjust speed

15HP Motor+

Frequency adjust speed

單根線徑

Diameter of each wire

Φ0.10~1.0㎜

絞合截面積

Stranded cross-sectional area

0.20~6mm²

絞 向

Twisting direction

左右絞向可調，“S” or “Z”   direction

線盤裝銅量

Weight   of conductor on reel

350~450㎏

機械尺寸

Mechanical Dimensions

L2690×W1300×H1400

機械重量

Machine net weight

3850㎏

使用電源

Voltage frequency

50HZ/380V（三相五線Three-phase   five-wire）

絞     距

Twist pitch range

標準絞距Standard   lay length：11.46～62.67mm

加大絞距Maximum   lay length：25.39~138.77mm

排線裝置

Cable device

加強型精密光桿排線器，排輻、排距均可調整

Enhanced   polished rod cable arranging device, row spacing and row width can be   adjusted at will

收線張力

Take-up tension

磁粉離合器控制張力、大小可調節，被拉線不變型。

The   magnetic powder clutch controls the tension, the size can be adjusted, and   the drawn wire does not change shape.

保護功能

Protective function

⑴長度到達設定參數自動停機

The length meter will automatically stop   when it reaches the set parameters;

⑵設備內部和外部斷線，自動停機報警The   internal and external disconnection of the equipment will automatically stop   and alarm;

⑶安全罩打開自動停機

It   will stop automatically when the lift is incorrect

⑷升降不正確自動停機

It   will stop automatically when the safety cover is opened。

⑸紅色警示燈：故障停機

Red   warning light: shutdown due to failure
