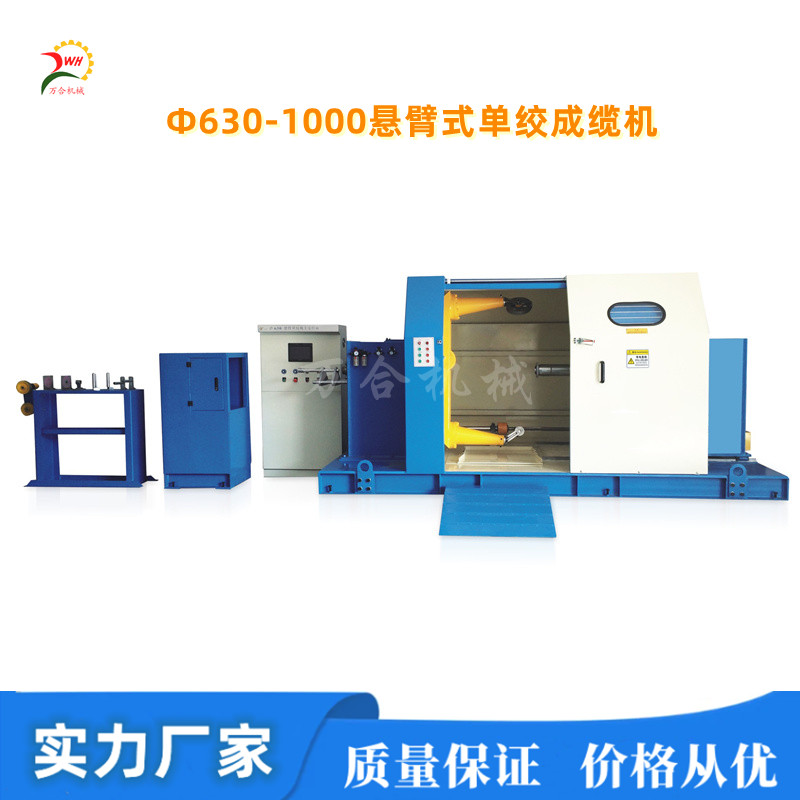

Φ630~1000懸臂式高速單絞成纜機

Φ630~1000 Cantilever High-speed Single Twisting Machine

一、用途：

本設備主要用于數據電纜、HDMI線纜、動力電纜、裸銅線（細線）、屏蔽層電纜、控制電纜等電纜多條集合成纜。

Application：This equipment is mainly used for data cables, HDMI cables, power cables, bare copper wires (thin wires), shielded cables, control cables and other cables.

二、設備組成：

由單絞主體，電控系統，中心包帶機，側放包帶架及放線等組成。

Composition: single-twisted main body, electric control system, center strapping machine, side strapping rack and wire pay-off, etc.

三、主要特點：

1.電腦節距、無引取輪、動力排線、線纜過線路徑增大轉向?qū)л喼睆揭员M量減少線纜彎曲。

2.絞線主體采用懸臂式結構，回轉體旋轉慣性小、轉速高、運轉平穩。

3.卷取箱沿直線導軌左右移動線盤，節距穩定無級可調，絞合線纜排位整齊，張力均衡。

4.與傳統單絞機相比，避免高速時排位絲桿斷裂帶來的不安全因素。

5.裝卸線盤方便，勞動強度小。

Main advantages：

1. Computer control pitch, non-tension traction wheel, motion wiring. wire cable passing path, increase the traction wheel diameter to reduce the wire cabin curve.

2. The main body of the stranded wire cantilever structure, the rotating body has small rotating inertia, high speed and stable operation.

3. The winding box moves the spool left and right along the linear guide rail, the pitch is stable and steplessly adjustable, the stranded cables are arranged neatly, and the tension is balanced.

4. Compared with the traditional single twister, it avoids the unsafe national quality caused by the breakage of the ranking screw at high speed.

5. It is convenient to load and unload the reel, and the labor intensity is small.

四、技術參數Technical Parameters：
